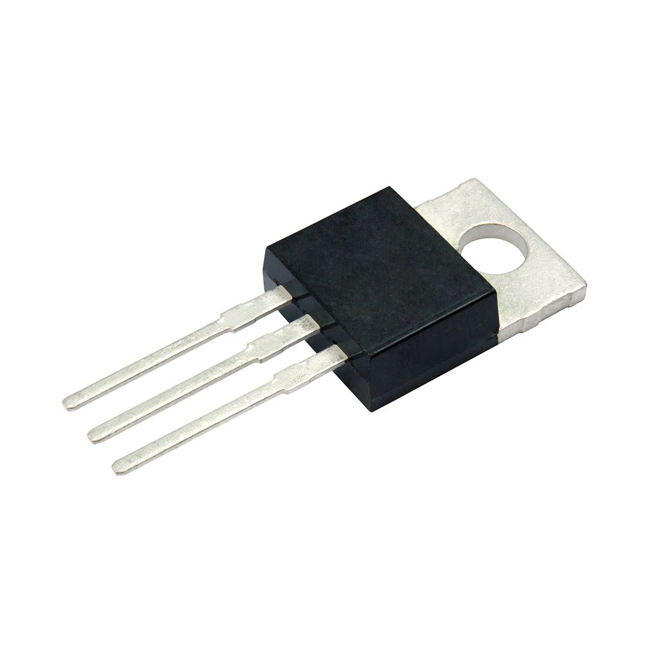

Specifications
Manufacturer
IR
Product Category
IC Chips
Mfr
Harris Corporation
Series
-
Package
Bulk
Product-Status
Active
FET-Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain-to-Source-Voltage-Vdss
80 V
Current-Continuous-Drain-Id-25°C
8A (Tc)
Drive-Voltage-Max-Rds-On-Min-Rds-On
10V
Rds-On-Max-Id-Vgs
360mOhm @ 5．6A 10V
Vgs-th-Max-Id
4V @ 250µA
Gate-Charge-Qg-Max-Vgs
15 nC @ 10 V
Vgs-Max
±20V
Input-Capacitance-Ciss-Max-Vds
350 pF @ 25 V
FET-Feature
-
Power-Dissipation-Max
60W (Tc)
Operating-Temperature
-55°C ~ 175°C (TJ)
Mounting-Type
Through Hole
Supplier-Device-Package
TO-220
Package-Case
TO-220-3
Product Details
Manufacturer
IR
Product Category
IC Chips
Mfr
Harris Corporation
Series
-
Package
Bulk
Product-Status
Active
FET-Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain-to-Source-Voltage-Vdss
80 V
Current-Continuous-Drain-Id-25°C
8A (Tc)
Drive-Voltage-Max-Rds-On-Min-Rds-On
10V
Rds-On-Max-Id-Vgs
360mOhm @ 5．6A 10V
Vgs-th-Max-Id
4V @ 250µA
Gate-Charge-Qg-Max-Vgs
15 nC @ 10 V
Vgs-Max
±20V
Input-Capacitance-Ciss-Max-Vds
350 pF @ 25 V
FET-Feature
-
Power-Dissipation-Max
60W (Tc)
Operating-Temperature
-55°C ~ 175°C (TJ)
Mounting-Type
Through Hole
Supplier-Device-Package
TO-220
Package-Case
TO-220-3
Variations
NewRefubUsed
Quantity
Shipping:
Free ShippingEstimated 15-30 business days via Registered Air Mail or othersSee details
Delivery:
Estimated between Thu, Apr 9 and Mon, Apr 13.This item requires 2-5 business days for processing before shipping after payment is confirmed. And depending on the destination and shipping method.See details
Return:60 days returns. Buyer pays for return shipping.See details
