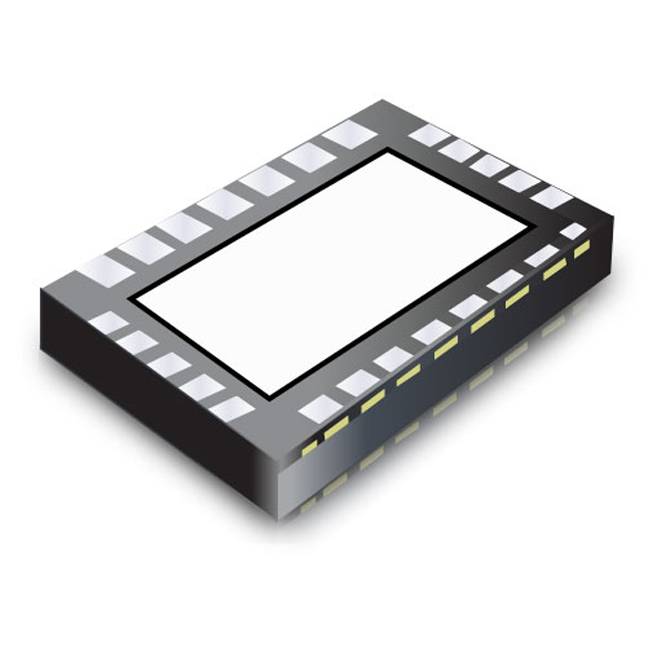

LTC4213CDDB#TR - Brand New Analog Devices / Linear Technology Specialized ICs
-
Description
The LTC4213CDDB#TR is an Electronic Circuit Breaker specialized IC. It is designed to sense the voltage across the drain and source terminals of an external N-channel MOSFET without the need for a sense resistor. This results in lower cost and reduced voltage and power loss in the switch path. The LTC4213CDDB#TR features an internal high-side driver to control the external MOSFET gate.
Specifications and features
- Fast 1µs Response Circuit Breaker
- 3 Selectable Circuit Breaker Thresholds
- No Sense Resistor Required
- Dual Level Overcurrent Fault Protection
- Controls Load Voltages from 0V to 6V
- High Side Drive for External N-Channel FET
- Undervoltage Lockout
- READY Pin Signals When Circuit Breaker Armed
- Small Plastic (3mm x 2mm) DFN Package
Application Scenarios
- Electronic Circuit Breaker
- High-Side Switch
- Hot Board Insertion
Comparison
Advantages- Lower cost
- Reduced voltage and power loss
Disadvantages- None mentioned
-
Similar parts: 327 , Click to view
-
