Product Details
Manufacturer
Texas Instruments
Product Category
Power Distribution Switches, Load Drivers
Series
TPS2052B
Product
USB Current Limited Power Switches
Type
High Side
Packaging
Tube
Unit-Weight
0.002561 oz
Mounting-Style
SMD/SMT
Package-Case
SOIC-8
Input-Type
Non-Inverting
Operating-Temperature
-40°C ~ 125°C (TJ)
Output-Type
N-Channel
Features
Status Flag
Interface
On/Off
Supplier-Device-Package
8-SOIC
Ratio of output to input
1899/12/30 1:02:00
Number-of-Outputs
2 Outputs
Voltage-Supply-Vcc-Vdd
Not Required
Fault-Protection
Current Limiting (Fixed), Over Temperature, UVLO
Output-Configuration
High Side
Rds-On-Typ
70 mOhm
Voltage-Load
2.7 V ~ 5.5 V
Current-Output-Max
500mA
Switch-Type
General Purpose
Maximum Operating Temperature
+ 85 C
Operating temperature range
- 40 C
Operating-Supply-Voltage
2.7 V to 5.5 V
Output-Current
500 mA
Software Development Kit
TPS2052BEVM-293
Supply-Voltage-Max
5.5 V
Supply-Voltage-Min
2.7 V
On-Resistance-Max
135 mOhms
Off-Time-Max
10 ms
Current limiting
1 A
On-Time-Max
3 ms

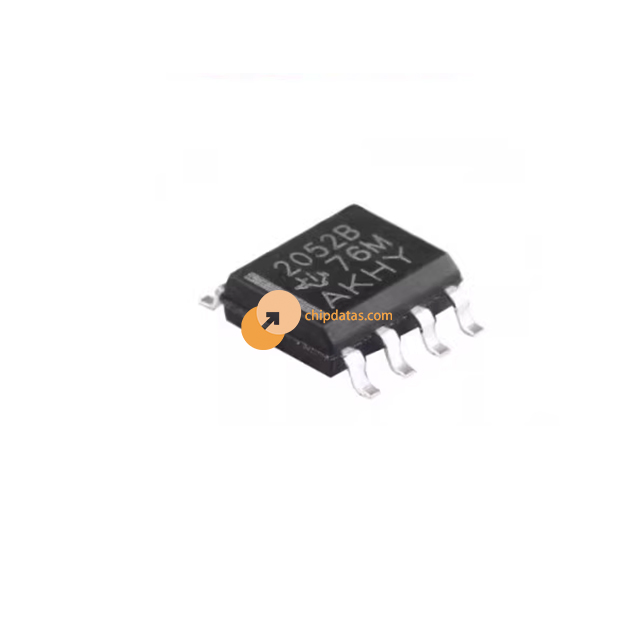

TPS2052BDR - Texas Instruments - Power Distribution Switches
Variations
Quantity
Shipping:
Free ShippingEstimated 15-30 business days via Registered Air Mail or othersSee details
Delivery:
Estimated between Thu, Feb 19 and Mon, Feb 23.This item requires 2-5 business days for processing before shipping after payment is confirmed. And depending on the destination and shipping method.See details
Return:60 days returns. Buyer pays for return shipping.See details
Payments:
Shop with confidence
One-month free return and one year warranty.
Full or Partial Refund , If the item is not as described
Full Refund if you don't receive your order
