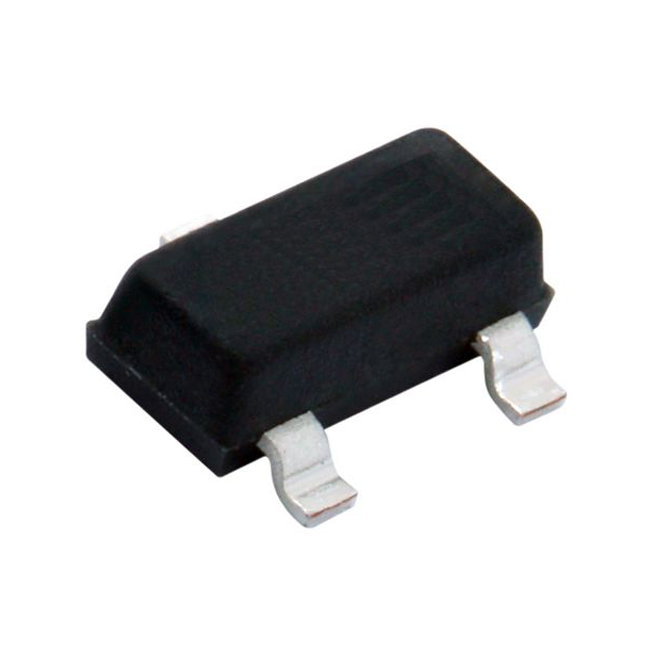

Name: AO5600EL - Brand New Alpha & Omega Semiconductor Inc. IC Chips
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO5600EL
Availability: InStock
Rating: 5 (237 reviews)

Beta notice: This website has not been fully upgraded or officially launched yet. Please do not place any orders.

All product names, trademarks, brands, and logos on this site are the property of their respective owners. Their use is for identification purposes only and does not imply any affiliation or authorization from the rights holders. We are not authorized dealers or distributors of the brand. The warranty is provided by us, not the original manufacturer.

Specifications

Manufacturer

Alpha & Omega Semiconductor Inc.

Product Category

IC Chips

Series

Packaging

Tape & Reel (TR)

Package-Case

SOT-563, SOT-666

Operating-Temperature

-55°C ~ 150°C (TJ)

Mounting-Type

Surface Mount

Supplier-Device-Package

SC-89-6

FET-Type

N and P-Channel Complementary

Power-Max

380mW

VDSS – Drain-Source Voltage

20V

Input Capacitance

45pF @ 10V

FET-Feature

Standard

Current-Continuous-Drain-Id-25°C

600mA, 500mA

Rds-On-Max-Id-Vgs

650 mOhm @ 500mA, 4.5V

Vgs-th-Max-Id

1V @ 250μA

Gate-Charge-Qg-Vgs

1nC @ 4.5V

Product Details

Manufacturer

Alpha & Omega Semiconductor Inc.

Product Category

IC Chips

Series

Packaging

Tape & Reel (TR)

Package-Case

SOT-563, SOT-666

Operating-Temperature

-55°C ~ 150°C (TJ)

Mounting-Type

Surface Mount

Supplier-Device-Package

SC-89-6

FET-Type

N and P-Channel Complementary

Power-Max

380mW

VDSS – Drain-Source Voltage

20V

Input Capacitance

45pF @ 10V

FET-Feature

Standard

Current-Continuous-Drain-Id-25°C

600mA, 500mA

Rds-On-Max-Id-Vgs

650 mOhm @ 500mA, 4.5V

Vgs-th-Max-Id

1V @ 250μA

Gate-Charge-Qg-Vgs

1nC @ 4.5V
