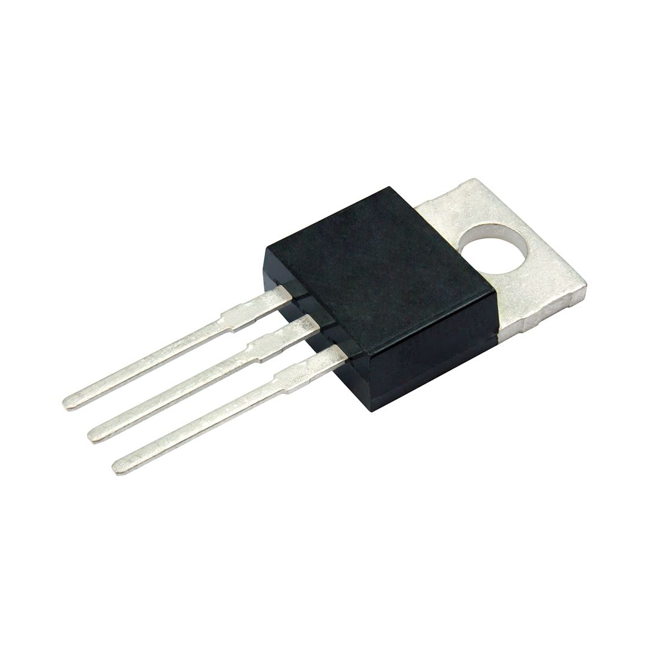

Specifications
Manufacturer
HAR
Product Category
IC Chips
Mfr
Harris Corporation
Series
-
Package
Bulk
Product-Status
Active
FET-Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain-to-Source-Voltage-Vdss
400 V
Current-Continuous-Drain-Id-25°C
1．7A (Tc)
Drive-Voltage-Max-Rds-On-Min-Rds-On
10V
Rds-On-Max-Id-Vgs
5Ohm @ 1．1A 10V
Vgs-th-Max-Id
4V @ 250µA
Gate-Charge-Qg-Max-Vgs
12 nC @ 10 V
Vgs-Max
±20V
Input-Capacitance-Ciss-Max-Vds
135 pF @ 25 V
FET-Feature
-
Power-Dissipation-Max
36W (Tc)
Operating-Temperature
-55°C ~ 150°C (TJ)
Mounting-Type
Through Hole
Supplier-Device-Package
TO-220-3
Package-Case
TO-220-3
Product Details
Manufacturer
HAR
Product Category
IC Chips
Mfr
Harris Corporation
Series
-
Package
Bulk
Product-Status
Active
FET-Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain-to-Source-Voltage-Vdss
400 V
Current-Continuous-Drain-Id-25°C
1．7A (Tc)
Drive-Voltage-Max-Rds-On-Min-Rds-On
10V
Rds-On-Max-Id-Vgs
5Ohm @ 1．1A 10V
Vgs-th-Max-Id
4V @ 250µA
Gate-Charge-Qg-Max-Vgs
12 nC @ 10 V
Vgs-Max
±20V
Input-Capacitance-Ciss-Max-Vds
135 pF @ 25 V
FET-Feature
-
Power-Dissipation-Max
36W (Tc)
Operating-Temperature
-55°C ~ 150°C (TJ)
Mounting-Type
Through Hole
Supplier-Device-Package
TO-220-3
Package-Case
TO-220-3
