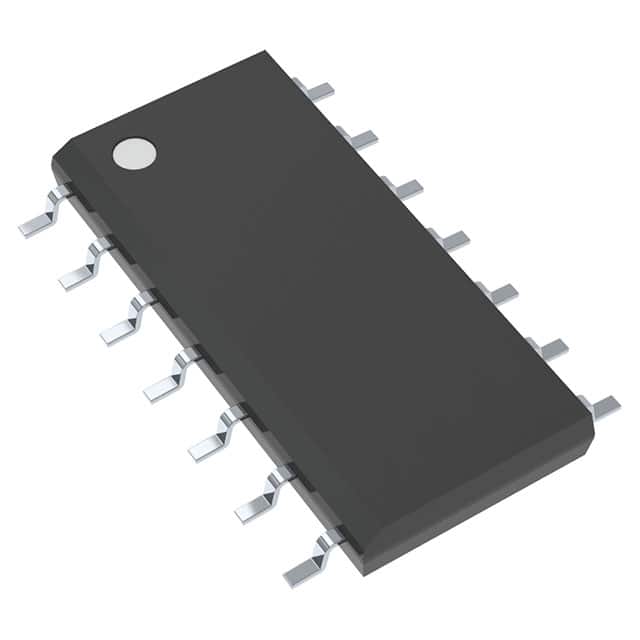

Name: CD4541BM96 - Brand New Texas Instruments Programmable Timers and Oscillators
Brand: Texas Instruments
SKU: CD4541BM96
Availability: InStock
Rating: 5 (173 reviews)

All product names, trademarks, brands, and logos on this site are the property of their respective owners. Their use is for identification purposes only and does not imply any affiliation or authorization from the rights holders. We are not authorized dealers or distributors of the brand. The warranty is provided by us, not the original manufacturer.

Product Details

Manufacturer

Texas Instruments

Product Category

Programmable Timers and Oscillators

Series

CD4541B

Type

Programmable Timer

Packaging

Alternate Packaging

Unit-Weight

0.004564 oz

Mounting-Style

SMD/SMT

Package-Case

SOIC-14

Frequency

100kHz

Operating-Temperature

-55°C ~ 125°C

Mounting-Type

Surface Mount

Output-Type

CMOS

Voltage-Supply

3 V ~ 20 V

Supplier-Device-Package

14-SOIC

Current-Supply

Count

65536

Pd-Power-Dissipation

100 mW

Maximum Operating Temperature

+ 125 C

Operating temperature range

- 55 C

Operating-Supply-Current

300 uA

Supply-Voltage-Max

18 V

Supply-Voltage-Min

3 V

Propagation-Delay-Max

10000 ns

High-Level-Output-Current

4 mA

Low-Level-Output-Current

4 mA

Number-of-Internal-Timers

1 Timer

Documents
