Specifications
Manufacturer
Vishay Dale
Product Category
Fixed Inductors
Series
IHLP-3232CZ-01
Product
Power Inductors
Type
Molded
Packaging
Tape & Reel (TR)
Current-Rating
13.7A
Termination-Style
SMD/SMT
Operating-Temperature-Range
- 55 C to + 125 C
Height
3 mm
Length
8.64 mm
Width
8.18 mm
Package-Case
3232
Operating-Temperature
-55°C ~ 125°C
Mounting-Type
Surface Mount
Size-Dimension
0.340" L x 0.322" W (8.64mm x 8.18mm)
Tolerance
±20%
Height-Seated-Max
0.118" (3.00mm)
Ratings
-
Shielding
Shielded
Inductance-Frequency
1μH
DC resistance (DCR)
8.35 mOhm Max
Core Materials
-
Current-Saturation
29A
Q factor
-
Self Resonant Frequency
51MHz
Frequency-Test
100kHz
Maximum-DC-Current
29 A
Maximum-DC-Resistance
7.8 mOhms
Product Details
Manufacturer
Vishay Dale
Product Category
Fixed Inductors
Series
IHLP-3232CZ-01
Product
Power Inductors
Type
Molded
Packaging
Tape & Reel (TR)
Current-Rating
13.7A
Termination-Style
SMD/SMT
Operating-Temperature-Range
- 55 C to + 125 C
Height
3 mm
Length
8.64 mm
Width
8.18 mm
Package-Case
3232
Operating-Temperature
-55°C ~ 125°C
Mounting-Type
Surface Mount
Size-Dimension
0.340" L x 0.322" W (8.64mm x 8.18mm)
Tolerance
±20%
Height-Seated-Max
0.118" (3.00mm)
Ratings
-
Shielding
Shielded
Inductance-Frequency
1μH
DC resistance (DCR)
8.35 mOhm Max
Core Materials
-
Current-Saturation
29A
Q factor
-
Self Resonant Frequency
51MHz
Frequency-Test
100kHz
Maximum-DC-Current
29 A
Maximum-DC-Resistance
7.8 mOhms

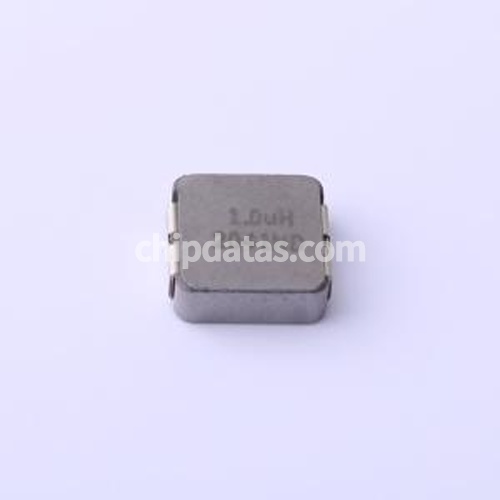

IHLP3232CZER1R0M01 - Brand New VISHAY Power Inductors
1+USD 1.52035
10+USD 1.50514
50+USD 1.48994
100+USD 1.44433
Variations
NewRefubUsed
Quantity
USD 1.52035 × 1 =USD 1.52
Shipping:
Free ShippingEstimated 15-30 business days via Registered Air Mail or othersSee details
Delivery:
Estimated between Thu, Apr 9 and Mon, Apr 13.This item requires 2-5 business days for processing before shipping after payment is confirmed. And depending on the destination and shipping method.See details
Return:60 days returns. Buyer pays for return shipping.See details
