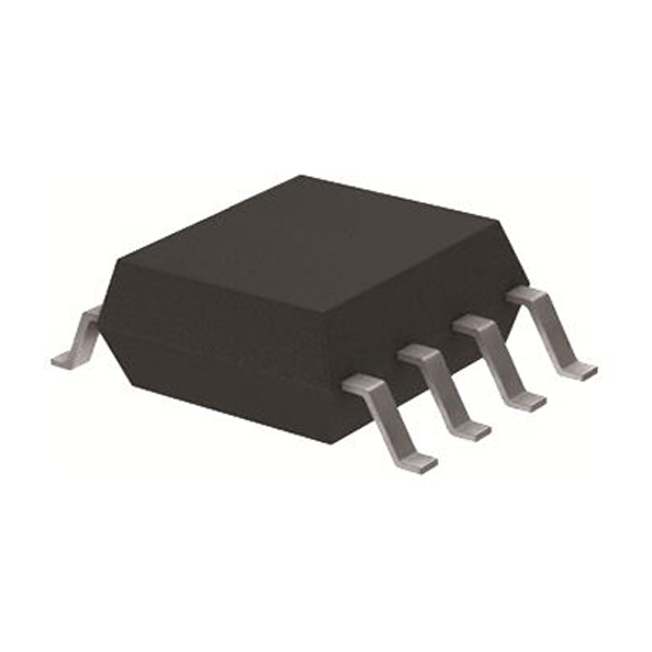

MAX1470EUI-T
MAX1470EUI-T - Brand New Maxim Integrated IC Chips
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX1470 is a fully integrated low-power CMOS superheterodyne receiver for
use with amplitude-shift keyed (ASK) data in the 315MHz band. With few
required external components, and a low-current power-down mode, it is ideal
for cost- and power-sensitive applications in the automotive and consumer
markets. The chip consists of a 315MHz low-noise amplifier (LNA), an image
rejection mixer, a fully integrated 315MHz phase-lock-loop (PLL), a 10.7MHz IF
limiting amplifier stage with received-signal-strength indicator (RSSI) and an
ASK demodulator, and analog baseband data-recovery circuitry.
The MAX1470 is available in a 28-pin TSSOP package.
Features
♦ Operates from a Single +3.0V to +3.6V Supply
♦ Built-In 53dB RF Image Rejection
♦ -115dBm Receive Sensitivity*
♦ 250µs Startup Time
♦ Low 5.5mA Operating Supply Current
♦ 1.25µA Low-Current Power-Down Mode for Efficient Power Cycling
♦ 250MHz to 500MHz Operating Band (Image Rejection Optimized at 315MHz)
♦ Integrated PLL with On-Board Voltage-Controlled Oscillator (VCO) and Loop
Filter
♦ Selectable IF Bandwidth Through External Filter
♦ Complete Receive System from RF to Digital Data Out
Applications
Remote Keyless Entry
Garage Door Openers
Remote Controls
Wireless Sensors
Wireless Computer Peripherals
Security Systems
Toys
Video Game Controllers
Medical Systems
Shipping
