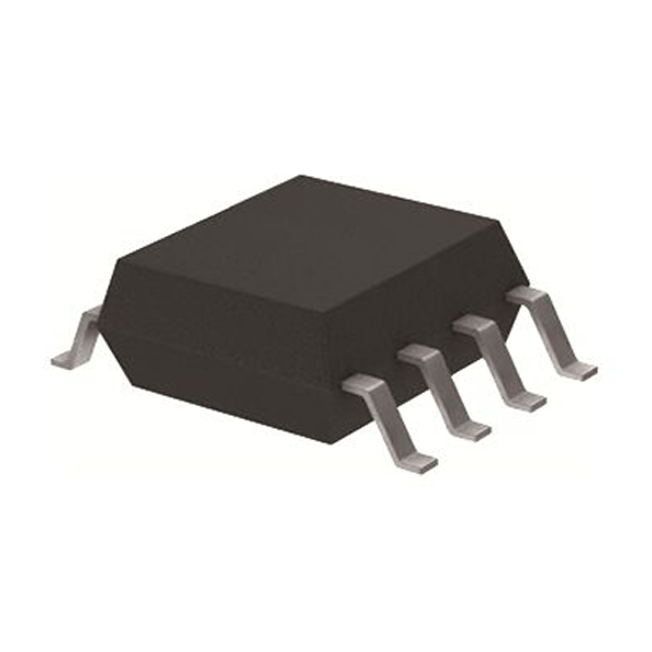

MAX662AESA-T
MAX662AESA-T - Brand New IC Chips
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX662A is a regulated +12V, 30mA-output, charge pump DC-DC converter. It
provides the necessary +12V ±5% output to program byte-wide flash memories,
and requires no inductors to deliver a guaranteed 30mA output from inputs as
low as 4.75V. It fits into less than 0.1in2 of board space. The MAX662A is a
pin-compatible upgrade to the MAX662, and is recommended for new designs. The
MAX662A offers lower quiescent and shut down currents, and guarantees the
output current over all temperature ranges.
The MAX662A is the first charge-pump boost converter to provide a regulated
+12V output. It requires only a few inexpensive capacitors, and the entire
circuit is completely surface-mountable.
A logic-controlled shutdown pin that interfaces directly with microprocessors
reduces the supply current to only 0.5µA. The MAX662A comes in 8-pin narrow SO
and DIP packages.
For higher-current flash memory programming solutions, refer to the data
sheets for the MAX734 (120mA output current, guaranteed) and MAX732 (200mA
output current, guaranteed) PWM, switch-mode DC-DC converters. Or, refer to
the MAX761 data sheet for a 150mA, PFM switch-mode DC-DC converter that
operates from inputs as low as 2V.
Features
♦ Regulated +12V ±5% Output Voltage
♦ 4.5V to 5.5V Supply Voltage Range
♦ Fits in 0.1in2
♦ Guaranteed 30mA Output
♦ No Inductor—Uses Only 4 Capacitors
♦ 185µA Quiescent Current
♦ Logic-Controlled 0.5µA Shutdown
♦ 8-Pin Narrow SO and DIP Packages
Applications
+12V Flash Memory Programming Supplies
Compact +12V Op-Amp Supplies
Switching MOSFETs in Low-Voltage Systems
Dual-Output +12V and +20V Supplies
