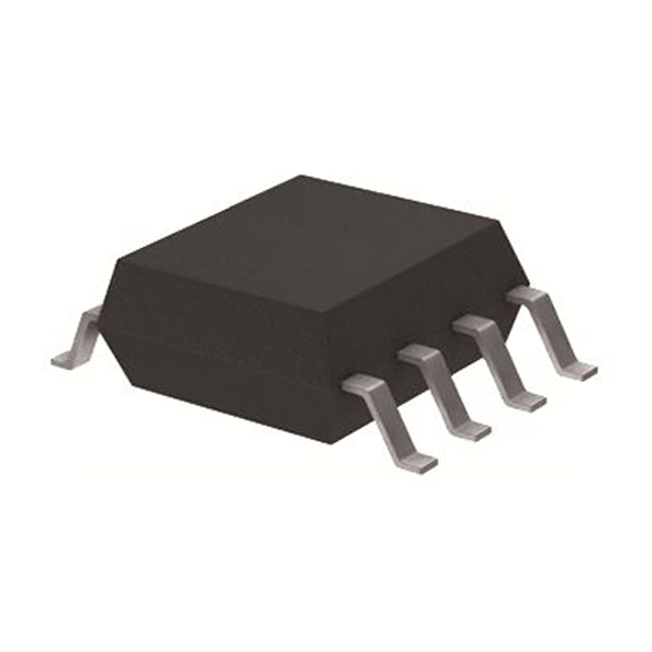

MAX4624EUT+
MAX4624EUT+ - Brand New Maxim Integrated Analog Switches / Multiplexers
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX4624/MAX4625 are low-on-resistance, low voltage single-pole/double-
throw (SPDT) analog switch es that operate from a single +1.8V to +5.5V
supply. The MAX4624 has break-before-make switching; the MAX4625 has make-
before-break switching. These devices also have fast switching speeds (tON =
50ns max, tOFF = 50ns max).
When powered from a +5V supply, the MAX4624/MAX4625 offer 1Ω max on-resistance
(RON), with 0.12Ω max RON matching and flatness. The digital logic inputs are
TTL compatible when using a single +5V supply. These switches also feature
overcurrent protection to prevent damage from short circuits and excessive
loads.
The MAX4624/MAX4625 are pin compatible with the MAX4544 and are available in
space-saving 6-pin SOT23 packages.
Features
♦ Low RON
1Ω max (+5V Supply)
2Ω max (+3V Supply)
♦ 0.12Ω max RON Flatness (+5V Supply)
♦ Overcurrent Protection
♦ +1.8V to +5.5V Single-Supply Operation
♦ Available in SOT23 Packages
♦ Fast Switching: tON = 50ns max, tOFF = 50ns max
♦ TTL-Logic Compatible (+5V Supply)
♦ Pin Compatible with MAX4544
♦ Guaranteed Break-Before-Make (MAX4624)
♦ Guaranteed Make-Before-Break (MAX4625)
Applications
Power Routing
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
PCMCIA Cards
Cellular Phones
Modems
Hard Drives
