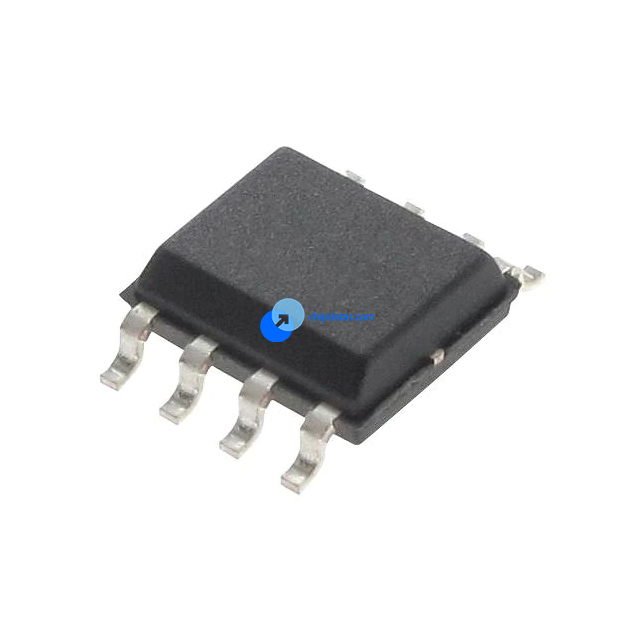

MAX1822ESA+
MAX1822ESA+ - Brand New MAXIM DC-DC Converters
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX1822 high-side supply, using a regulated charge pump, generates a regulated output voltage 11V greater than the input supply voltage to power high-side switching and control circuits. The MAX1822 allows low-resistance N-channel MOSFETs (FETs) to be used in circuits that normally require costly, less efficient P-channel FETs and PNP transistors. The high side output also eliminates the need for logic FETs in +5V and other low-voltage switching circuits.
Features
♦ +3.5V to +16.5V Operating Supply Voltage Range
♦ Output Voltage Regulated to VCC + 11V (typ)
♦ 150µA (typ) Quiescent Current
♦ Power-Ready Output
Applications
High-Side Power Control with N-Channel FETs
Low-Dropout Voltage Regulators
Power Switching from Low Supply Voltages
H-Switches
Stepper Motor Drivers
Battery-Load Management
Portable Computers
