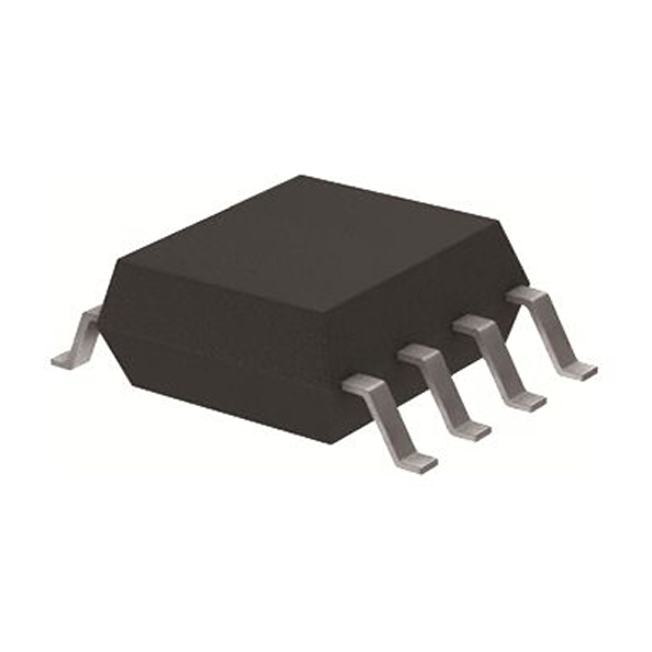

MAX6950CEE
MAX6950CEE - Brand New Maxim Integrated Buffer/Driver/Transceiver
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX6950/MAX6951 are compact common-cathode display drivers that interface
microprocessors to individual 7-segment numeric LED digits, bar graph, or
discrete LEDs through an SPI™-, QSPI™-MICROWIRE™- compatible serial interface.
The supply voltage can be as low as 2.7V.
The MAX6950 drives up to five 7-segment digits or 40 discrete LEDs. The
MAX6951 drives up to eight 7-segment digits or 64 discrete LEDs.
Features
♦ High-speed 26MHz SPI-, QSPI-, MICROWIRECompatible Serial Interface
♦ +2.7V to +5.5V Operation
♦ Individual LED Segment Control
♦ Segment Blinking Control that Can Be Synchronized Across Multiple Drivers
♦ Hexadecimal Decode/No-Decode Digit Selection
♦ Digital Brightness Control
♦ Display Blanked on Power-Up
♦ Drives Common-Cathode LED Digits
♦ Multiplex Clock Syncronizable to External Clock
♦ Slew-Rate Limited Segment Drivers for Low EMI
♦ 75µA Low-Power Shutdown (Data Retained)
♦ Small 16-Pin QSOP Package
Applications
Set-Top Boxes
Panel Meters
White Goods
Bar Graphs and Matrix Displays
Industrial Controllers and Instrumentation
Professional Audio Equipment
Medical Equipment
